 Drain channels for shower floor/tray with a slope of 0.5% made completely from stainless steel AISI 304 without plastic or joints.

« Back

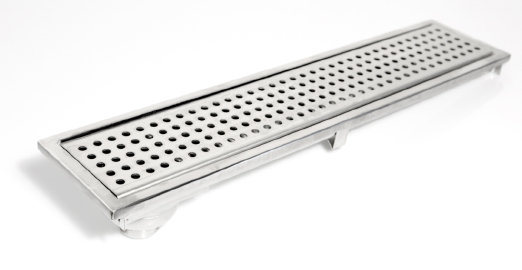

Channel model CAN

The drain is completely fabricated in stainless steel; the drain is soldered to the body of the channel without seals or glues that would deteriorate over time.

Channel model CAN
ReferenceModel Size (cm)Ø Tube
CAN600Channel 60 13x6040mm
CAN700 Channel 70 13x7040mm
CAN800Channel 80 13x8040mm

PLANE DRAIN Channel, FlAT model

PLANE DRAIN Channel, FlAT model
Reference Size (cm) Ø Tube
PLN100 7 x 70 x h7 40 mm
PLN200 7 x 80 x h7 40 mm

Plane: details of the models FLAT



: details of the models FLAT



PLANE DRAIN Channel, EXTRA FLAT model

PLANE DRAIN Channel, EXTRAPLANA model
Reference Size (cm) Ø Tube
EP1L00 7 x 70 x h 3,5 40 mm
EPL2L00 7 x 80 x h 3,5 40 mm

Theflattest channel on the market, drain system Picane ®
Installation at floor level without digging into the forged ground below

Plane: details of the models EXTRA FLAT

Plano detalle de modelo EXTRAPLANO



Special waterproof

EI KIT waterproofed (3m2)

EI KIT waterproofed (3m2) comes with basin of horizontal outlet and the drain channel

Reference Description
KIT3M2 Waterproofing sheet (3m2) + basin PVC of horizontal outlet
